RTFlowManager

Overview

This documentation describes the use of RTFlowManager. These APIs can be used exclusively via the RTFlowManager Android app.
In RTFlowManager, a "Flow" represents a unidirectional RTP communication channel.

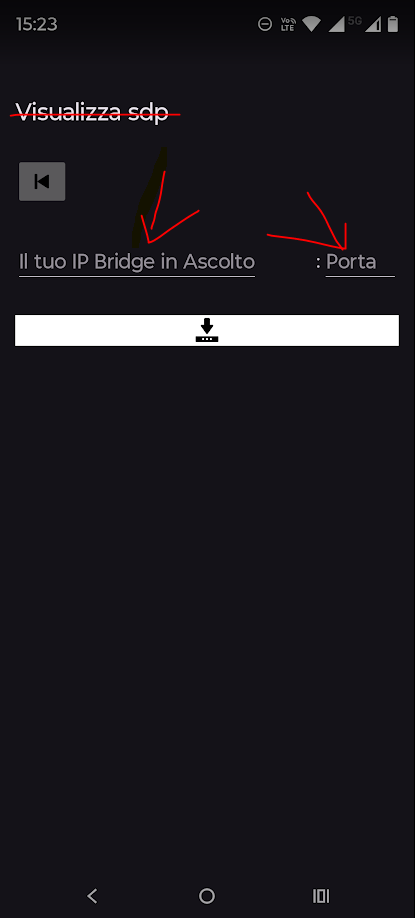

First, if you need to use RTFlowManager, remember to configure in "Settings" the URL and port of the Bridge you intend to use. After that, you can use the other sections of the app.

Base URL	`{{"Il tuo IP Bridge in Ascolto"}}`
Port	HTTPS Port

Replace {{"Il tuo IP Bridge in Ascolto"}} with the actual RTPBridge IP host.

Replace {{"Port"}} with the actual RTPBridge HTTPS number port.

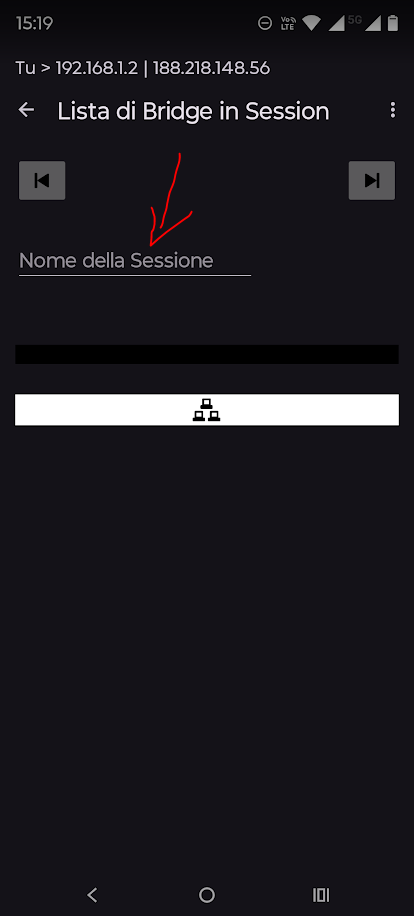

GETFlow List for a session

The "Bridge List by Session" section is useful for reviewing all Flows within a specific session. The session is defined when the Flow is created, and multiple users can use the same session name.
It is also useful for retrieving the Flow ID.

Parameter	Description
`Session Name`	Name identifying a session on the Bridge.

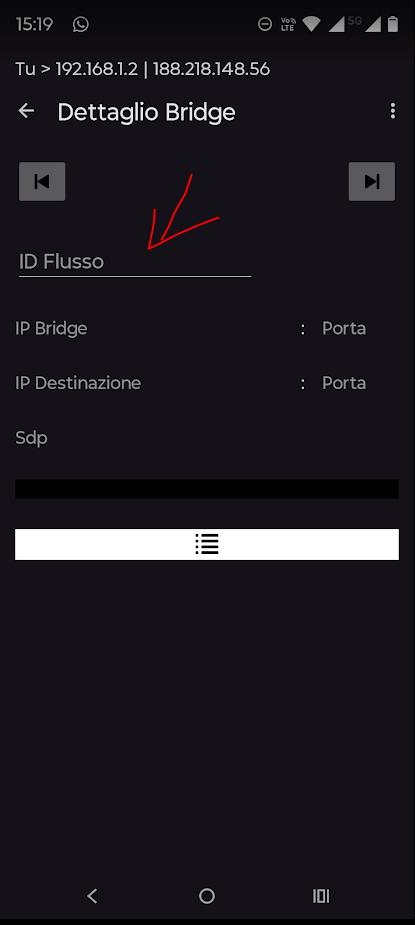

GET Flow detail

Return the list of flow details Flow for your Flow id.

Parameter	Description
`Id Flow`	RTP flow identifier.

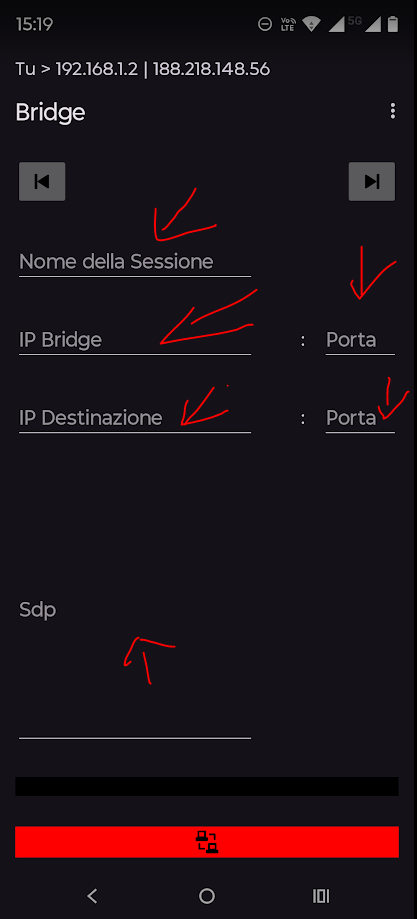

POST Create RTP flow

Creates a new RTP flow for the specified session.

Parameter	Description
`session name`	RTP session name.
`IP Bridge`	Your RTP Bridge IP.
`IP Bridge Port`	Your RTP Bridge Port.
`IP Target`	Your RTP Target IP for your new flow.
`IP Target Port`	Your RTP Target number Port for your new flow.
`SDP content file`	Optional: Your RTP SDP file to play your flow content in target.

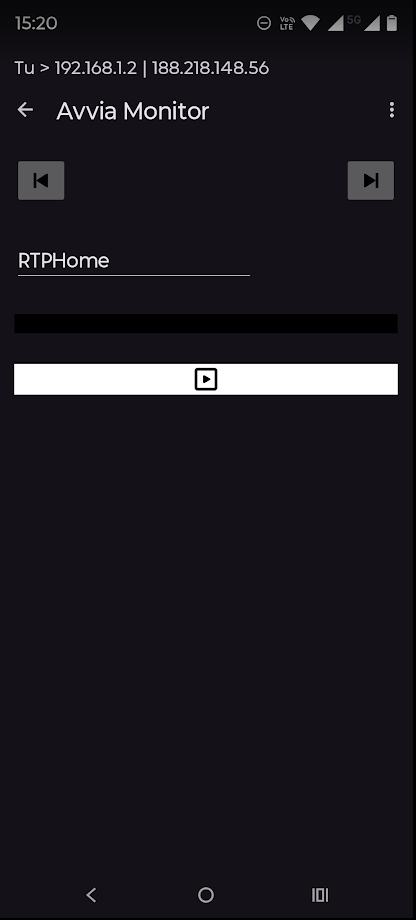

POST Run monitor

Each RTPBridge node have a monitor to manages and run the flows.

Parameter	Description
`work dir`	Monitor working dir on node.

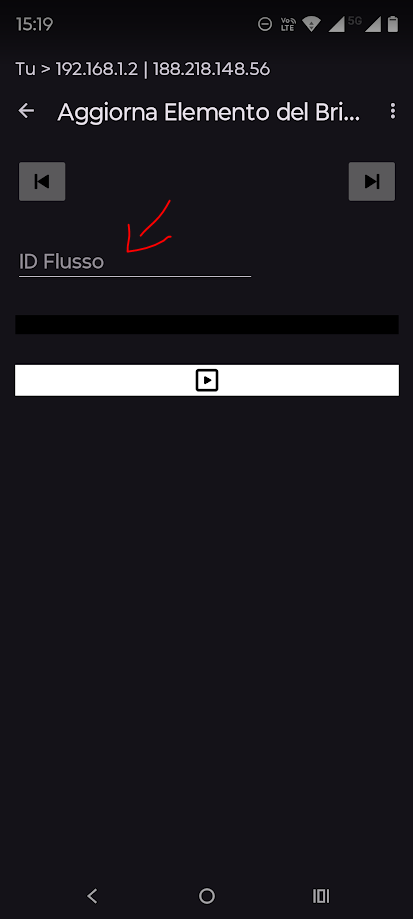

PUT Update RTP flux

Prepare your flow to going it in run.

Parameter	Description
`Id Flow`	RTP flow identifier.

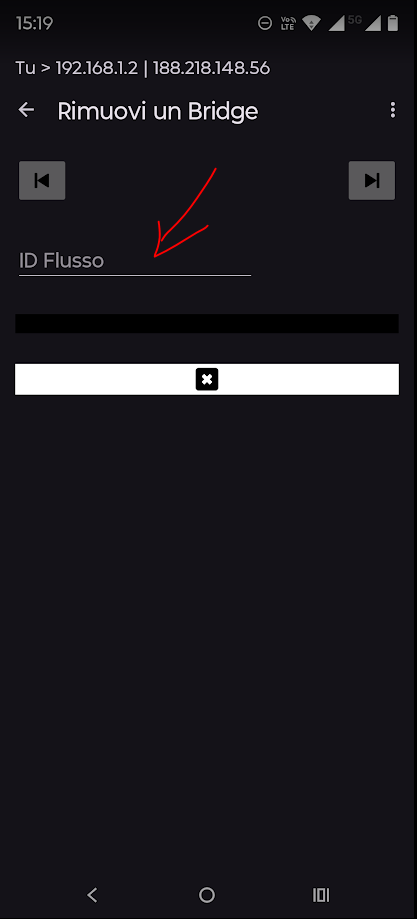

DELETE Remove RTP flux

Remove a flow on the RTP Bridge system node.

Parameter	Description
`Id Flow`	RTP flow identifier.

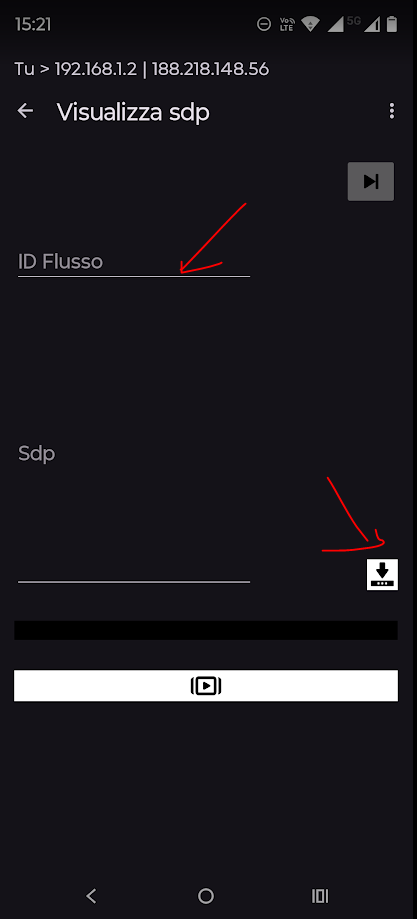

GET Get SDP

You may be see your sdp content rely to yuor flow. And store this on your device.

Parameter	Description
`Id Flow`	RTP flow identifier.
